Fanway specializes in delivering efficient and reliable end-to-end PCB assembly services, precisely tailored to your unique requirements to accelerate your product success.
SMT (Surface Mount Technology) is the most widely used technology and process in the modern PCB manufacturing and assembly industry. SMT components lack wire leads and are soldered directly onto the surface of printed circuit boards (PCBs). This technology enables smaller, more densely packed components, and delivering faster production times and lower overall costs.
SMT requires a stencil to apply solder paste onto a PCB. This step is critical in SMT assembly because solder paste volume directly affects soldering quality. At Fanway, we conduct automated Solder Paste Inspection (SPI) before component placement to ensure precise paste deposition.
Although SMT is widely used in modern PCB manufacturing and assembly, Through-Hole Technology (THT) still plays an irreplaceable role in applications requiring high reliability, high power output, and mechanical stress resistance.

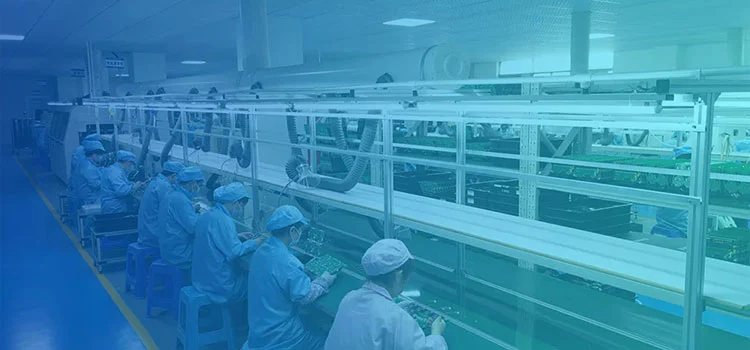

During the through-hole assembly process, component leads are inserted into drilled holes on the PCB according to their designated positions and polarity. At Fanway, we offer both manual and automated insertion.
Mixed PCB manufacturing and assembly combines Surface Mount Technology (SMT) and Through-Hole Technology (THT), leveraging their unique advantages in PCB assembly.
| Parameter | SMT+THT Hybrid | Pure SMT | Pure THT |
| Design Flexibility | ⭐⭐⭐⭐⭐ (Unrestricted component choice) | ⭐⭐⭐⭐ | ⭐⭐ |
| Thermal Resilience | ⭐⭐⭐⭐ (Handles high-power + miniaturization) | ⭐⭐ | ⭐⭐⭐⭐⭐ |
| Production Cost | ⭐⭐⭐ (Optimized for complexity) | ⭐⭐⭐⭐ | ⭐⭐ |
| Mechanical Strength | ⭐⭐⭐⭐ (Critical joints anchored via THT) | ⭐⭐ | ⭐⭐⭐⭐ |
| Technology | Equipment | Precision |
| SMT Lines | Samsung S1, S2, 481, 482 etc + reflow | 01005 components |
| THT Systems | Auto-insertion + selective solder | Pin spacing: 0.5mm |
| Quality Control | 3D AOI + X-ray + ICT testing | Defect rate: <200ppm |
To ensure quality control, we have an in-house X-ray machine that enables our technicians to rapidly detect surface-level defects. We also perform automated functional testing and optical inspection to identify faulty or misplaced components. Our expert team specializes in custom PCB fabrication and assembly.
We are an electronic assembly manufacturer specializing in PCB design, layout, fabrication, and assembly. To request a quote and lead time, please email your Gerber files and BOM list to Kate@fanwaypcba.com. If you don't have these files, our engineering team can create design files based on your requirements.
