In modern electronic products, printed circuit boards (PCBs) are an indispensable core component. It is not only a carrier of various electronic components, but also determines the electrical connection quality and operating stability of the entire machine. With the rapid development of electronic technology, different types of PCBs have also emerged to meet the needs of various complex applications. This article will give you a detailed introduction to the common types of printed circuit boards and their applicable scenarios.
Single-sided boards are the most basic PCB structure. The conductive patterns are only distributed on one side of the substrate, and the other side is used to install electronic components. This type of circuit board has a simple manufacturing process and low cost, and is widely used in low-cost and low-complexity products such as electronic toys, household appliances, LED lighting, and radios.
Features:
Low cost
Simple structure
Easy to mass produce
Unlike single-sided boards, double-sided PCBs have conductive patterns on both sides of the substrate, and electrical connections on both sides are achieved through vias. This structure greatly increases the wiring density and circuit complexity, and is suitable for electronic devices with more functions and more compact structures.
Common applications: Industrial control panels, instrumentation, power supply equipment, smart home appliances, etc.
Multilayer PCB consists of more than three layers of conductive layers (usually 4, 6, 8, or even dozens of layers), separated by insulating materials in the middle and connected by blind or buried holes. This type of circuit board can achieve higher wiring density and stronger electromagnetic compatibility, suitable for high-end electronic devices.
Widely used in:
Communication equipment
Medical equipment
High-performance computer motherboards
Aerospace and military electronic products
Advantages:
High space utilization
Good electrical performance
Strong anti-interference ability

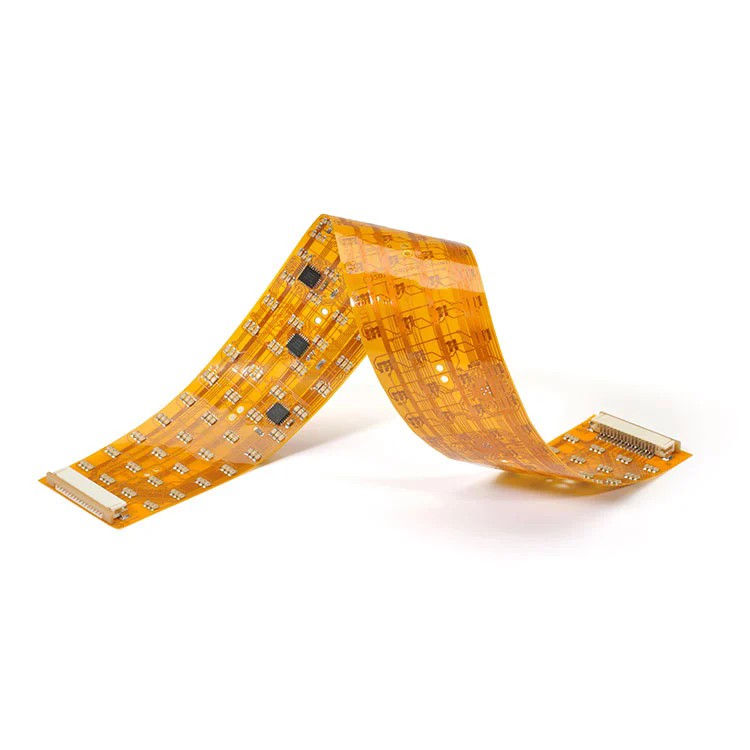

Flexible circuit boards are made of flexible plastic substrates (such as polyimide or polyester film), have good flexibility, and can be bent, folded or twisted. FPC is widely used in thin and light electronic products such as smartphones, laptops, cameras, wearable devices, etc.
Main features:
Bendable and foldable
Lightweight and small size
Flexible installation
Rigid-flexible board combines the advantages of rigid PCB and flexible PCB, and has both rigid and flexible areas in the same circuit board. This structure is particularly suitable for electronic devices with limited space and multiple folding, such as medical monitoring equipment, camera modules, and military communication systems.
Advantages:
Can save connectors and wiring harnesses
Improve signal transmission stability
Compact structure and high reliability
High-frequency PCB uses special high-frequency materials, such as PTFE (polytetrafluoroethylene), etc., which can support the stable transmission of high-frequency signals. This type of PCB is mainly used in radar systems, radio frequency communication equipment, 5G antennas, automotive radars, and other occasions with extremely high signal integrity requirements.
Features:
Low dielectric constant
Stable high-frequency performance
Suitable for high-speed communication applications
Metal-based PCB (such as aluminum substrate, copper substrate) uses metal materials as thermal conductive layer, has good heat dissipation performance, and is often used in power LED, automotive electronics, power modules and other products with strict requirements on heat dissipation.
Advantages:
Strong thermal conductivity
High mechanical strength
Extend the life of electronic components
As the "central nervous system" of electronic products, the type of printed circuit board directly affects the performance, volume, cost and even stability of the product. Understanding the structural characteristics and application scenarios of various PCBs will help companies select more accurately and improve product competitiveness.
