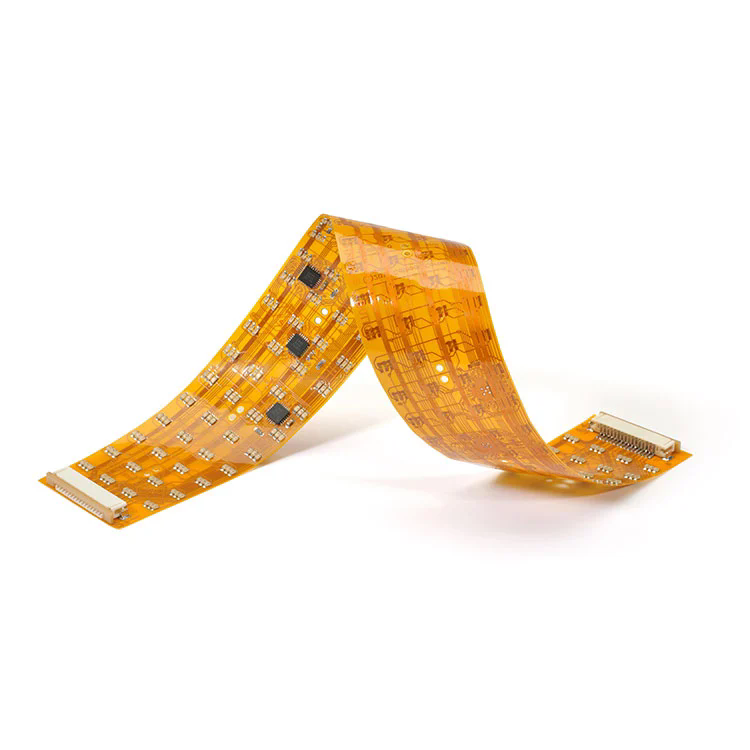

Flexible Printed Circuit Boards (FPC PCBs) are an innovation that has reshaped the structure of modern electronics by enabling flexible, lightweight, and high-density circuit connections. Unlike traditional rigid PCBs, FPC PCBs are made from flexible base materials such as polyimide (PI) or polyester (PET), which can bend, fold, or twist without breaking the circuit. This unique characteristic allows designers to achieve smaller, thinner, and more dynamic product structures.
FPC PCBs are widely used in wearable devices, medical instruments, automotive systems, smartphones, and industrial control systems. Their flexibility and superior performance make them a critical foundation for the evolution of compact and multifunctional electronics.
Key characteristics of FPC PCBs include:
Lightweight and thin: The thickness can be as low as 0.1mm, making it suitable for miniaturized electronic devices.
High reliability: Flexible copper circuits reduce wiring errors and improve overall signal integrity.
Heat and chemical resistance: The polyimide substrate ensures stable performance in harsh environments.
Excellent dynamic bending capability: Suitable for devices with movable or foldable parts.
In essence, the FPC PCB enables a perfect blend of functionality, durability, and flexibility, supporting the design freedom demanded by the next generation of electronic innovation.
The working principle of an FPC PCB lies in its layered structure, which allows conductive copper traces to be printed on a flexible insulating film. The structure generally consists of:
Base Material (Substrate): Polyimide (PI) or PET film that provides mechanical flexibility and insulation.
Adhesive Layer: Bonds the copper foil to the substrate (can be adhesive or adhesive-less type).
Copper Foil: Conductive layer for current transmission.
Coverlay Film: Protects the circuit from environmental damage and provides insulation.
Reinforcement Layer (optional): Strengthens connector areas or mounting points.
Below is a detailed table summarizing key technical specifications commonly used in professional FPC PCB manufacturing:
| Parameter | Specification | Description |
|---|---|---|
| Base Material | Polyimide (PI) / PET | Flexible and heat-resistant substrate material |
| Copper Thickness | 1/3 oz – 3 oz | Determines current-carrying capacity |
| Layer Count | 1 – 6 layers | Depends on circuit complexity |
| Minimum Line Width / Spacing | 0.05mm / 0.05mm | Defines circuit density precision |
| Surface Finish | ENIG, OSP, HASL, Immersion Silver | Ensures solderability and corrosion protection |
| Bending Radius | ≥0.5mm | Indicates flexibility and durability during bending |
| Operating Temperature | -40°C to +150°C | Suitable for high-temperature environments |
| Solder Mask | Yellow, Black, Green, Transparent | Provides aesthetic and protective coating |
| Impedance Control | ±10% | Maintains signal transmission stability |
These technical parameters directly affect the electrical performance, mechanical durability, and product integration efficiency of FPC PCBs. The correct combination of materials and design ensures stable signal transmission even in extreme mechanical conditions.
When considering PCB design for modern electronic devices, FPC PCB offers unmatched versatility and reliability compared to rigid boards. The reasons behind its growing popularity are based on three major engineering advantages:
FPC PCBs enable engineers to create three-dimensional interconnections by bending and folding the board to fit complex device geometries. This feature significantly reduces space requirements and allows for the design of thinner, lighter, and more ergonomic devices — essential in smartphones, cameras, and medical wearables.
With fewer solder joints and connectors, FPC PCBs reduce the risk of loose connections and signal interference. They are highly resistant to vibration, making them ideal for automotive and aerospace applications where consistent performance is crucial.
The uniformity of copper traces and controlled impedance design help maintain signal integrity at high frequencies. This is especially vital in high-speed communication systems, IoT modules, and advanced sensors.
Simplifies assembly and reduces wiring errors.
Offers excellent heat dissipation performance.
Enables lightweight and miniaturized electronic assemblies.
Supports automated production with high yield rates.
Consumer Electronics: Smartphones, tablets, foldable displays, cameras.
Medical Equipment: Pacemakers, diagnostic imaging systems, biosensors.
Automotive Electronics: Instrument panels, LED lighting, airbag systems.
Industrial Automation: Control panels, robotic arms, and smart sensors.
By integrating these capabilities, FPC PCBs are not just a technological component but a strategic design advantage that defines product innovation and competitiveness in today’s electronics manufacturing.
Selecting the right FPC PCB supplier is essential for achieving stable product performance and long-term reliability. When evaluating a manufacturer, consider the following aspects:
Ensure that the manufacturer is equipped with advanced laser drilling machines, precision etching systems, and automatic optical inspection (AOI) to maintain dimensional accuracy and consistency.
Top-quality FPC PCBs depend on certified materials such as Dupont™ or Panasonic™ polyimide films, combined with high-purity copper foils. Strict quality control processes like IPC Class 3 compliance and ISO 9001 certification are indicators of manufacturing reliability.
A professional supplier should offer full technical support — from early-stage circuit layout design to impedance simulation, prototyping, and mass production — ensuring the final product meets both performance and cost requirements.
Reliable FPC PCBs undergo multiple testing processes, including:
Electrical Testing (E-test) for open/short detection.
Bending and Flexural Tests to confirm mechanical endurance.
Thermal Shock and Aging Tests for environmental durability.
Microscopic Inspection for trace uniformity and adhesion quality.
By choosing an experienced and certified supplier, you can significantly reduce production risks, improve reliability, and optimize time-to-market.
Q1: What is the difference between FPC PCB and rigid PCB?
A1: The main difference lies in flexibility and structure. FPC PCBs use flexible materials such as polyimide that allow bending and folding, while rigid PCBs are made from solid FR-4 substrates. FPC PCBs are ideal for compact or moving devices, whereas rigid PCBs are used for static and large structures.
Q2: Can FPC PCBs handle high-current applications?
A2: Yes, with proper copper thickness and thermal management, FPC PCBs can effectively handle high current. Multi-layer FPCs with reinforced copper can sustain heavy loads in automotive, power modules, and industrial control systems.
In an era where flexibility, reliability, and precision define technological advancement, FPC PCBs play an irreplaceable role in powering the next generation of electronic devices. Their ability to combine lightweight structure, high-speed performance, and design adaptability makes them a cornerstone of innovation in diverse industries — from consumer electronics to medical technology and beyond.
At Fanway, we specialize in providing custom-engineered FPC PCB solutions that meet the most demanding industrial standards. With advanced manufacturing facilities, rigorous quality testing, and a commitment to customer satisfaction, Fanway ensures every flexible circuit delivers peak performance and long-term durability.
If you are developing high-performance electronics and looking for a reliable FPC PCB partner, don’t hesitate to contact us today. Fanway’s engineering team will provide expert guidance, design support, and one-stop production services to bring your innovative ideas to life.
-
