Printed Circuit Board

Printed Circuit Board

From PCB design to mass production, Fanway delivers quick-turn PCB manufacturing services as one-stop solutions to address your diverse project requirements and accelerate your time-to-market.

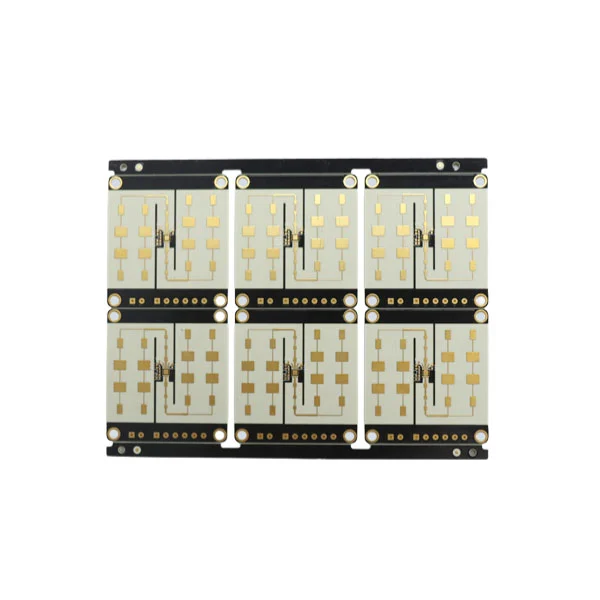

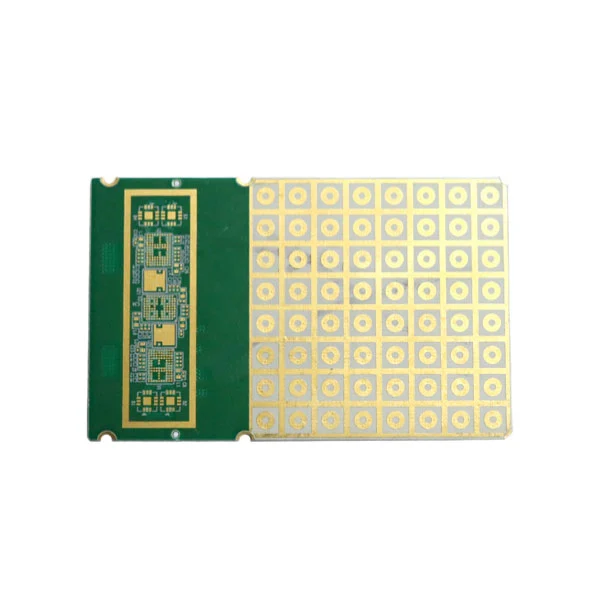

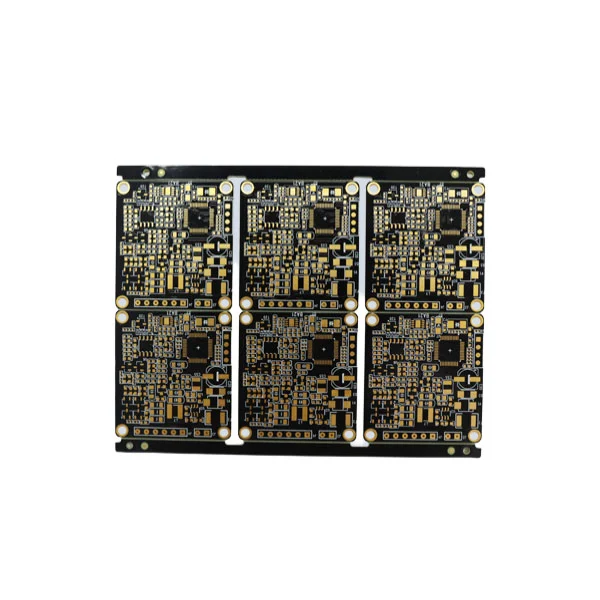

FR4 PCB
  • FR4 PCBFR4 PCB
  • FR4 PCBFR4 PCB
  • FR4 PCBFR4 PCB

FR4 PCB

As a professional high quality Fanway FR4 PCB manufacture, you can rest assured to buy FR4 PCB from our factory and we will offer you the best after-sale service and timely delivery.

Your Trusted Partner in PCB Manufacturing

FR4 PCB is the most widely used substrate material in the electronics industry for printed circuit boards (PCBs). The term FR4 stands for Flame Retardant Level 4, indicating its compliance with the UL94 V-0 standard, which ensures the material self-extinguishes during high-temperature or short-circuit conditions to prevent flame propagation. As a specialist in China, Fanway provide one-stop service from design to production to ensure that your products achieve the best balance of performance and cost.

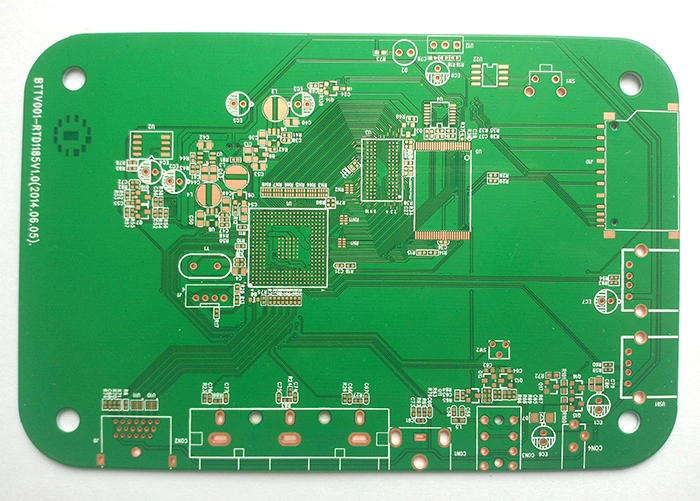

Fr 4 Pcb

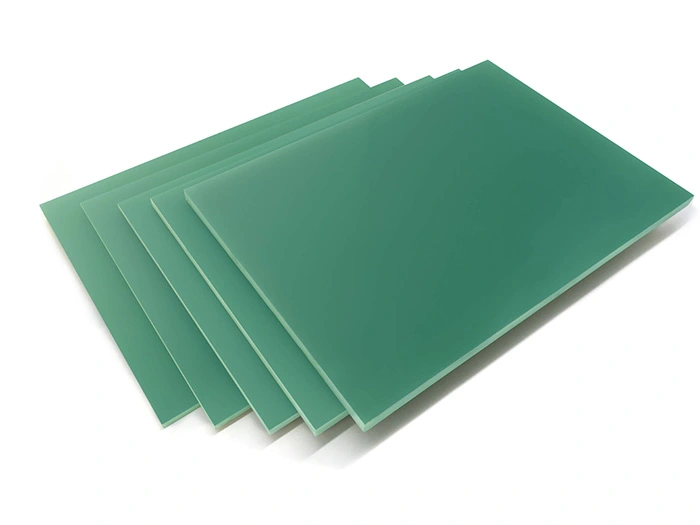

Fr 4 Material

Why Choose FR4 PCB?

● UL94 V-0 Certification
Safe in critical environments.
● Versatility
Supports single-sided, double-sided, and multilayer designs (up to 108 layers).
● Customization
Available in thicknesses from 0.4mm to 3.2mm, with options for high-Tg, halogen-free, or thick-copper (2-6oz) variants.


Why Choose Fanway for Your Partner?

Custom Service

Stringent Quality Control

We have a strange R & D team with expertise and innovation to tailored your solutions.

Rapid Prototype

Fast Turnaround Time

Our one-stop prototyping services to shorten your product development cycles.

Scalable Production

Competitive Prices

Our advanced equipment, quick delivery, and cost effective.

Technical Support

Excellent Customer Service

24/ 7 online experts always ready to assist you.


Fanway FR4 PCB Production Capabilities

Layer Count Up to 108L
Finish Board Thickness 0.2mm-10.0mm
Max Panel Size 610mm *1200mm
Finish Copper thickness 0.5OZ-12OZ
Min Line Width 2.5mil/2.5mil
Min Finish Hole Size 0.1mm
Max Aspect Ratio 25:1
Impedance Control Tolerance +/-10%
Surface finishes HASL (LF), ENlG, lmmersion Tin, lmmersion silver, Golden finger, Full board with hard gold plating, OSP, ENEPlG
Materials: FR-4 TG150/TG170, Rogers, Arlon, Taconic, TUC TU-872 SLK, TU-883, Panasonic M6/M7, Bergguist etc.


Benefits of FR4 PCB in Fanway

Cost-Effective
We will help you optimize material costs by using FR4 for standard sections and Rogers materials only for high-frequency areas.

High-Performance Solutions
Rogers materials offer excellent dielectric properties, ensuring low signal loss for high-frequency applications, and their thermal stability enables efficient heat dissipation.

Adaptable Design
We can custom FR4 according to your specific requirements, whether it’s for RF communication, automotive systems, or medical devices.

Scalable Production
Our quick turnaround service can support projects from small-batch prototyping to large-scale production, ensuring consistency and quality.

Quality Assurance
We are certified by UL, IPC, RoHs, ISO to ensure high-quality products.

Various Industries
Our one-stop solution to meet the customer’s various industries such as 5G and telecommunication, automotive, medical device and so on.


Fanway FR4 PCB Case

6l Led Photoelectric Pcb With 1 Step Hdi

6L LED Photoelectric PCB with 1-Step HDI

8l Laptop Motherboard With 2 Step Hdi

8L Laptop Motherboard with 2-Step HDI

14l Rogers Hybrid Pcb With 1 Step Hdi

14L Rogers Hybrid PCB with 1-Step HDI

Multilayer Hdi Blind Via Pcb

Multilayer HDI Blind Via PCB

Hot Tags: FR4 PCB Manufacturer China, High-Tg FR4 Board Supplier, Fanway RoHS-Compliant PCB, Industrial Control PCB, Automotive FR4 PCB, Quick-Turn FR4 Prototype
