In today’s rapidly advancing electronics industry, the demand for devices that can handle higher power loads, withstand extreme operating conditions, and maintain reliability over extended lifespans has never been greater. At the heart of this challenge lies the printed circuit board (PCB), the foundation upon which every electronic system is built. While standard PCBs are widely used, heavy copper PCBs have gained prominence for applications where current carrying capacity, thermal management, and durability are critical.

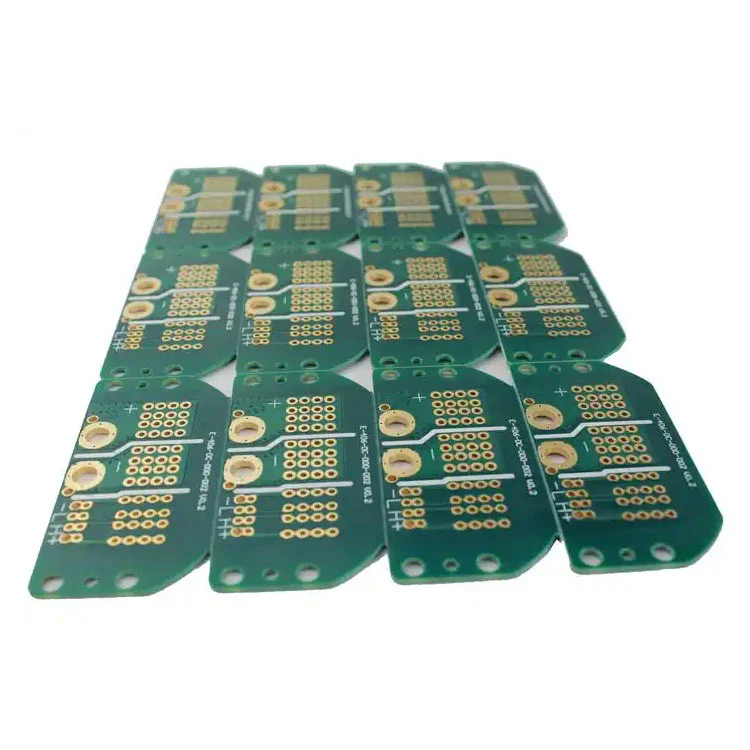

A Heavy Copper PCB is defined as a circuit board with copper conductors that are significantly thicker than those found in standard PCBs. While regular PCBs typically feature copper thickness between 1 oz/ft² (35 µm) and 3 oz/ft² (105 µm), heavy copper PCBs start at 3 oz/ft² and can reach 20 oz/ft² or even higher, depending on the manufacturing process and application requirements.
The use of thick copper layers allows these boards to carry higher currents without overheating, dissipate heat more effectively, and endure harsh environmental conditions such as extreme temperatures, vibrations, and mechanical stress. As industries transition toward electrification, renewable energy, electric vehicles, and industrial automation, heavy copper PCBs play a pivotal role in ensuring performance and safety.
Key industries where heavy copper PCBs are indispensable include:
Power Electronics: Inverters, power converters, and motor control systems.
Automotive: Electric vehicle battery management and charging systems.
Renewable Energy: Solar power systems and wind turbine controllers.
Military and Aerospace: Defense electronics and avionics.
Industrial Equipment: High-current switching devices and heavy machinery.
The reason why heavy copper PCBs matter is simple: without them, high-power systems would fail prematurely, overheat, or suffer from unreliable connections that could compromise safety and functionality.
The strength of heavy copper PCBs lies in their unique design features, which provide enhanced performance beyond what standard PCBs can achieve.
The thicker copper traces allow significantly more current to flow without excessive heat generation. This makes them ideal for high-current applications such as power distribution systems, battery charging circuits, and power converters.
In electronic systems, overheating is one of the leading causes of component failure. Heavy copper PCBs excel at dissipating heat due to their thicker copper layers, reducing hot spots and maintaining a stable operating temperature even under demanding loads.
With robust copper conductors, these boards withstand mechanical stress, solder joint fatigue, and repeated thermal cycling. This makes them suitable for environments where vibrations or sudden temperature changes occur.
Instead of using multiple layers or oversized boards to distribute current, heavy copper PCBs allow engineers to design compact systems with fewer layers. This leads to cost savings in materials, reduced assembly time, and more efficient use of space.
Heavy copper PCBs can integrate both high-current and control circuits onto the same board. This eliminates the need for separate boards, streamlining design and improving overall system reliability.
| Parameter | Specification Options |
|---|---|
| Copper Thickness | 3 oz/ft² to 20 oz/ft² (105 µm – 700 µm) |
| Board Material | FR-4, Polyimide, High-Tg FR-4, Ceramic, Metal Core |
| Layer Count | 2–12 layers (customizable depending on application) |
| Thermal Resistance | Optimized for high heat dissipation, compatible with heat sinks |
| Dielectric Strength | High voltage resistance up to 5 kV or more |
| Surface Finish | HASL, ENIG, OSP, Immersion Silver, Immersion Tin |
| Applications | Power supplies, inverters, automotive, renewable energy systems |
These specifications highlight why heavy copper PCBs stand out in handling the dual challenges of high current and high temperature.
For manufacturers and system designers, choosing heavy copper PCBs is more than just a technical decision—it is a strategic investment that impacts product quality, market competitiveness, and long-term reliability.
Longer Lifespan of Electronics
By distributing heat efficiently and preventing localized failures, heavy copper PCBs significantly extend the operational life of devices.
Safety and Reliability
In sectors like medical devices, defense, and automotive, failure is not an option. Heavy copper boards provide stable performance under critical conditions.
Design Flexibility
The ability to integrate power and control circuits on the same PCB simplifies design, reduces space, and minimizes system complexity.
Reduced Maintenance Costs
Durable construction leads to fewer replacements, less downtime, and lower maintenance expenses over time.
Support for High-Power Trends
With the global shift toward electric vehicles, renewable energy, and high-efficiency systems, heavy copper PCBs provide the foundation for innovation.
Electric Vehicles (EVs): Heavy copper PCBs support battery management systems, charging infrastructure, and high-current control circuits.
Renewable Energy: Solar power inverters and wind turbine controllers rely on these boards to handle fluctuating loads.
Medical Equipment: Devices like MRI machines and X-ray equipment require reliable high-current circuits.
Industrial Automation: Motor drives and robotic systems depend on stable high-power PCBs.
Q1: Why are heavy copper PCBs more expensive than standard PCBs?
A: The higher cost results from specialized manufacturing processes, thicker copper plating, and more robust lamination requirements. However, the investment is justified by improved reliability, longer lifespan, and reduced overall system costs in high-power applications.
Q2: Why can’t standard PCBs be used in high-current systems instead of heavy copper PCBs?
A: Standard PCBs have limited copper thickness, which restricts current-carrying capacity and heat dissipation. Using them in high-power environments would lead to overheating, premature failures, and safety risks. Heavy copper PCBs are engineered specifically to overcome these limitations.
As industries embrace electrification, renewable energy, and digital transformation, the demand for high-reliability, high-performance PCBs will only grow. Heavy copper PCBs are not just a current solution—they are a foundation for the future.
Electric Mobility: With the global push toward EVs, charging systems and high-capacity batteries rely on robust PCBs for power management.
Green Energy: Solar and wind energy systems demand boards that can manage fluctuating power loads without compromising performance.
5G and IoT Infrastructure: High-performance networks require PCBs that can support high currents for base stations and connected devices.
Miniaturization of Power Systems: Designers are reducing device sizes without sacrificing power, making heavy copper PCBs indispensable.
Businesses that adopt heavy copper PCBs future-proof their systems against rising energy demands and stricter safety regulations. From reducing environmental impact to improving product reliability, these boards offer unmatched value.
At Fanway, we are dedicated to manufacturing high-quality heavy copper PCBs that meet the stringent requirements of modern industries. Our expertise in advanced fabrication, combined with a commitment to durability and precision, ensures that every board delivers exceptional performance in high-power environments.
Whether your business operates in automotive, renewable energy, industrial automation, or aerospace, Fanway provides tailored PCB solutions to help you achieve long-term success. For more information, detailed specifications, or custom inquiries, contact us today and discover how Fanway can support your projects with world-class heavy copper PCB technology.
-
