From PCB design to mass production, Fanway delivers quick-turn PCB manufacturing services as one-stop solutions to address your diverse project requirements and accelerate your time-to-market.

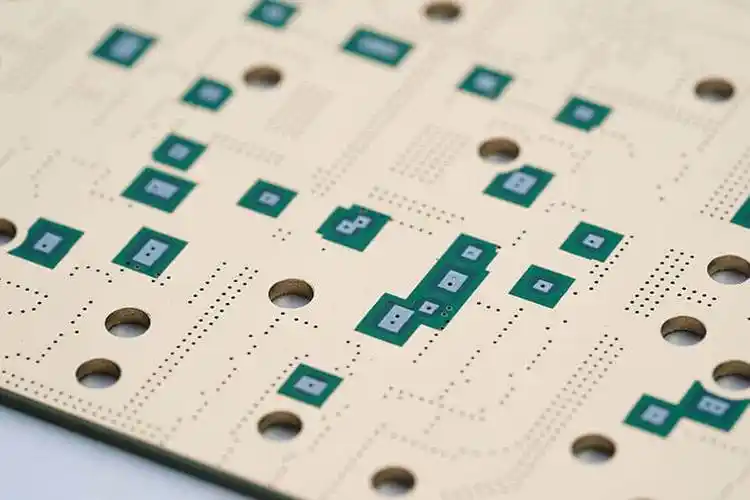

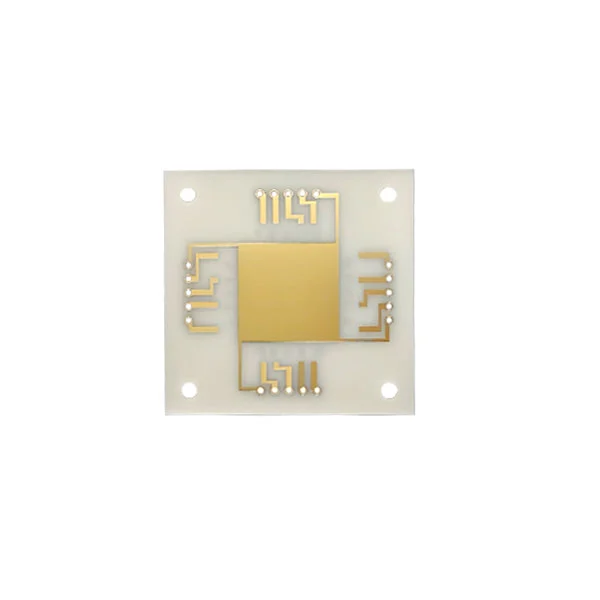

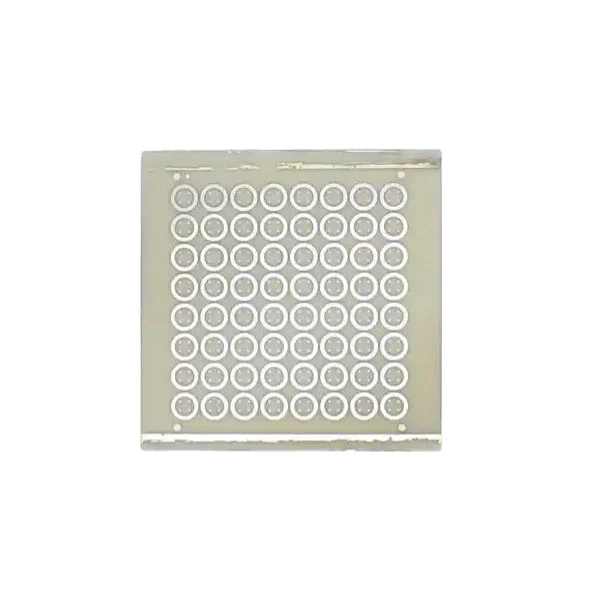

Ceramic PCBs (printed circuit boards) are specialized substrates designed for high-temperature, high-frequency, and high-reliability applications. Unlike traditional FR4 or metal-core PCBs, ceramic boards use materials like Alumina (Al₂O₃), Aluminum Nitride (AlN), or Beryllium Oxide (BeO) for superior thermal and electrical performance. At Fanway, we offer rapid prototype to shorten your product development cycles, and commit to be your quick-turn ceramic PCB supplier in China.
We have a strange R & D team with expertise and innovation to tailored your solutions.
Our one-stop prototyping services to shorten your product development cycles.
Our advanced equipment, quick delivery, and cost effective allows us to meet your diverse demands.
24/ 7 online experts always ready to assist you.
Excellent Thermal Conductivity
Ceramic substrates like Al₂O₃ (Alumina), AlN (Aluminum Nitride), and BeO (Beryllium Oxide) dissipate heat 5-10x faster than traditional FR4, eliminating hotspots and ensuring optimal performance in high-power systems.
Extreme Temperature Resistance
Operate flawlessly in temperatures ranging from -50°C to +850°C, best solution for aerospace, automotive, and industrial applications.
High-Frequency Performance
Low signal loss and stable dielectric properties ensure pinpoint accuracy in RF/microwave circuits, 5G modules, and radar arrays.
Miniaturization & Durability
Ultra-thin designs with strong mechanical strength reduce space and weight while resisting corrosion, vibration, and thermal shock.
Hermetic Sealing
Resists moisture, gases, and corrosive substances, ensuring unwavering reliability in mission-critical environments
| Characteristic | Specification/Performance |
| Operating Temperature Range | -55°C to 1000°C (HTCC process up to 1600°C) |
| Thermal Conductivity | Al₂O₃: 24-28 W/mK; AlN: 170-230 W/mK |
| Dielectric Constant | 9.8-10.2 (@1MHz) |
| Breakdown Voltage | >15 kV/mm |
| Coefficient of Thermal Expansion | (CTE) 6-8 ppm/°C (matches chips) |
LED Lighting: High-power LED arrays, automotive headlights, and UV sterilization systems.
Power Electronics: EV inverters, IGBT modules, and renewable energy converters.
Aerospace & Defense: Satellite communications, avionics, and missile guidance systems.
Medical Devices: Implantable sensors, laser surgical tools, and diagnostic imaging equipment.
Telecom & 5G: RF power amplifiers, base stations, and millimeter-wave devices.
LED Lighting
Medical Devices
Renewable Energy Converters
Telecom & 5G
