From PCB design to mass production, Fanway delivers quick-turn PCB manufacturing services as one-stop solutions to address your diverse project requirements and accelerate your time-to-market.

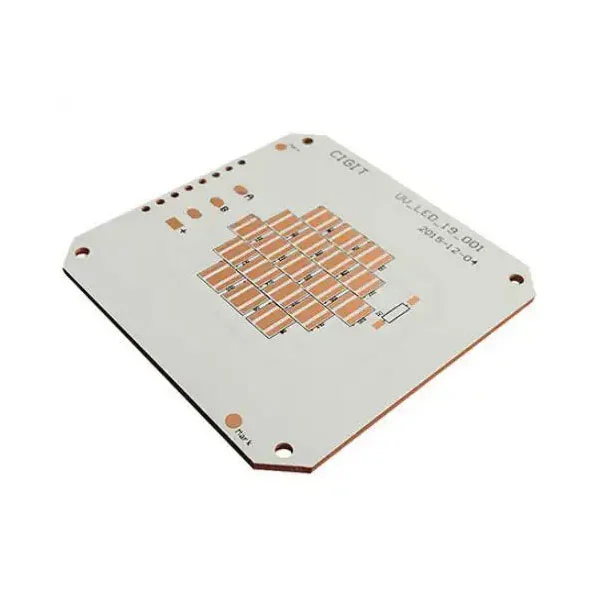

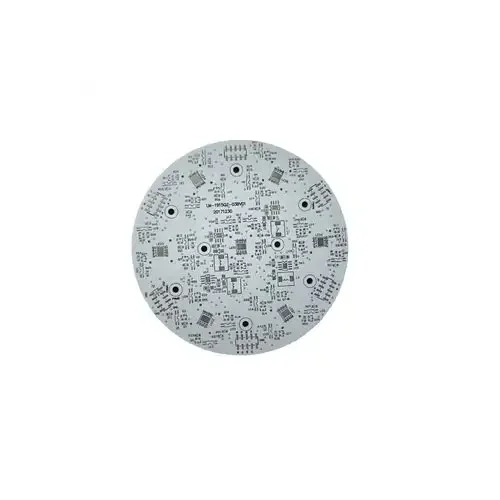

Aluminum substrate is a metal based printed circuit board (MCPCB) with aluminum alloy as the heat dissipation core, designed for high-frequency thermal electronic components. At Fanway, we specialize in manufacturing high-quality Aluminum PCBs designed to meet the various demands of electronics. As a trusted PCBA (Printed Circuit Board Assembly) partner, we combine cutting-edge technology with industry expertise to deliver aluminum substrates that excel in thermal management, durability, and performance.
| Custom Service | We have a strange R & D team with expertise and innovation to tailored your solutions. |
| Rapid Prototype | Our one-stop prototyping services to shorten your product development cycles. |
| Scalable Production | Our advanced equipment, quick delivery, and cost effective allows us to meet your diverse demands. |
| Technical Support | 24/ 7 online experts always ready to assist you. |
With thermal conductivity (1-12 W/(m·K)) dozens of times higher than conventional FR4 substrates (0.3 W/(m·K)), directly lowering component temperatures by 20-30°C. Coupled with its ultra-low thermal resistance design (0.3-1.5°C/W), compare traditional PCBs in cooling efficiency, achieving over 80% performance enhancement.
The aluminum substrate delivers excellent mechanical robustness with >800MPa bending strength (3x stronger than FR4) when using 6061 alloy, passes rigorous 10-2000Hz random vibration tests (meeting automotive electronics standards), and achieves ultra-compact thermal performance, its mere 1.0mm thickness dissipates 10W/cm² while being 60% lighter than copper heat sinks.
The aluminum substrate provides inherent EMI shielding with 30-100dB high-frequency interference suppression, maintains stable dielectric properties (ε=3.5-5.0 @1MHz) through ceramic-filled insulation, and ensures high-voltage safety with AC 3-8kV dielectric withstand capability - critical for medical equipment applications.
Free DFM Analysis: Optimize designs for bend cycles and stress points.
Component Sourcing: Full BOM management with traceable components.
Box Build Assembly: Integrated PCB fabrication to final product assembly.
LED Lighting: Drive high-lumen output with minimal thermal resistance.
Power Electronics: Optimize inverters, motor controllers, and converters.
Automotive Systems: Ensure reliability in EV batteries, lighting, and control modules.
Industrial Automation: Support high-power machinery and IoT devices.
Automotive Systems
Industrial Automation

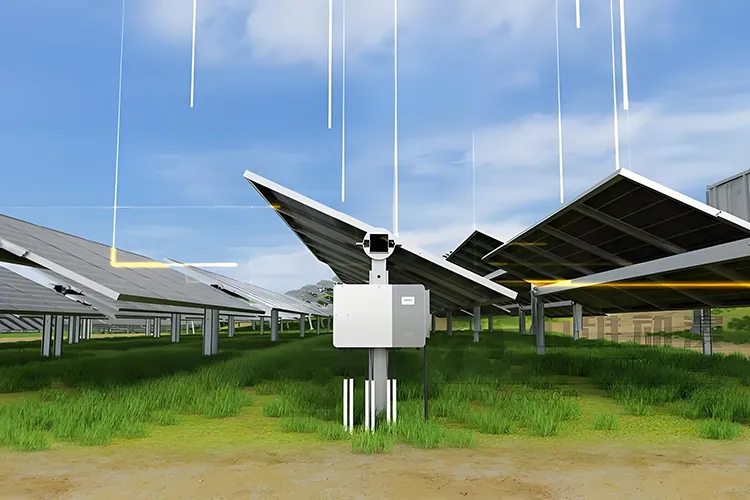

Inverters
LED Lighting
