Flexible Printed Circuit Boards (FPC PCBs) are at the heart of today’s rapidly evolving electronics industry. As devices become smaller, lighter, and more powerful, FPC PCB technology has emerged as a critical solution for achieving compact designs without compromising performance. By diving deep into material specifications, performance parameters, and advanced manufacturing techniques, we’ll provide you with a clear understanding of their advantages and help you make informed decisions for your next project.

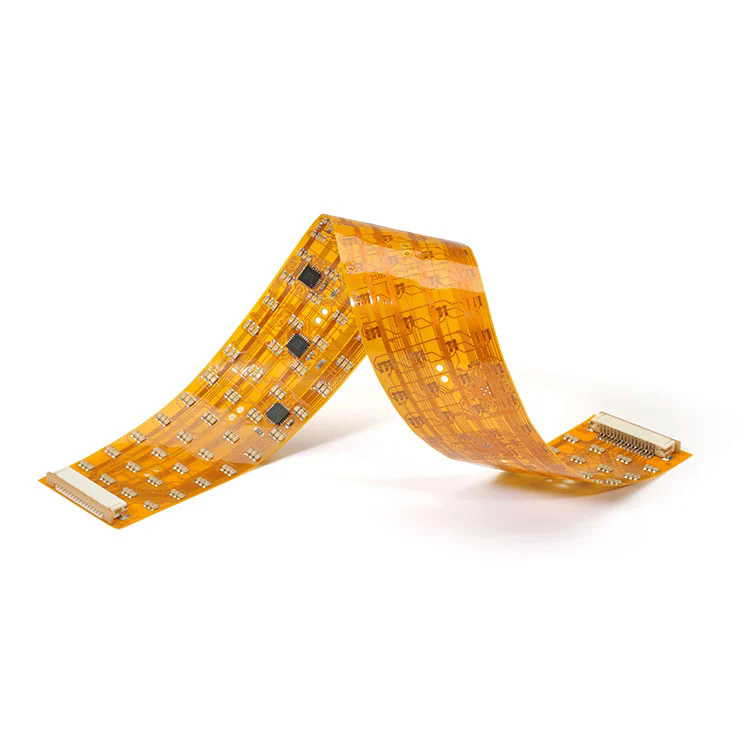

An FPC PCB (Flexible Printed Circuit Board) is a highly adaptable electronic interconnect made of thin, flexible materials. Unlike traditional rigid PCBs, FPCs can bend, fold, and twist, allowing manufacturers to design smaller and more lightweight devices without compromising on electrical performance.
The structure typically includes:
Base Material: Polyimide (PI) or polyester (PET) film for flexibility.
Conductive Layer: Copper foil for efficient current transmission.
Adhesive Layer: Ensures strong bonding between copper and substrate.
Protective Overlay: Provides insulation and mechanical protection.
An FPC PCB functions like a traditional PCB but offers mechanical flexibility. When integrated into a device, it can connect different electronic components across dynamic or confined spaces. For example, in smartphones, FPC PCBs connect the mainboard to the display through hinge mechanisms while maintaining stable signal transmission.
Fanway’s FPC PCBs are engineered with precision and reliability in mind. Below is an overview of the core specifications:
| Parameter | Specification | Description |
|---|---|---|
| Base Material | Polyimide / PET | Ensures durability and high flexibility |
| Copper Thickness | 1oz / 2oz | Handles different current capacities |
| Layer Count | 1–6 layers | Supports simple to complex circuit designs |
| Surface Finish | ENIG / OSP / HASL | Protects copper and improves solderability |
| Min. Trace Width | 0.05 mm | Enables high-density circuit routing |
| Min. Hole Size | 0.1 mm | Suitable for micro-via applications |
| Operating Temp. | -40°C to +150°C | Performs reliably in extreme environments |
| Bend Radius | As low as 1 mm | Perfect for dynamic bending scenarios |
| Impedance Control | ±10% tolerance | Ensures stable signal integrity |
These parameters make FPC PCBs ideal for industries demanding miniaturization, flexibility, and durability.
The unique advantages of FPC PCBs have led to widespread adoption across multiple sectors:
Smartphones & Tablets: Compact interconnects between displays, batteries, and processors.
Wearable Devices: Ultra-thin FPCs provide seamless integration for watches, fitness trackers, and VR headsets.
Laptops & Gaming Consoles: High-density flexible circuits improve signal reliability in tight enclosures.
ADAS & Infotainment: Flexible PCBs ensure stable connections within limited dashboard spaces.
LED Lighting Systems: Enhanced heat resistance supports high-performance automotive lighting.
Battery Management: FPC PCBs withstand vibration and temperature fluctuations in EVs.
Diagnostic Imaging Devices: Flexible designs support compact medical scanners.
Wearable Health Monitors: Lightweight and biocompatible circuits enable patient-friendly designs.
Surgical Tools: High-reliability FPCs power precision instruments in minimally invasive surgeries.
Robotics & Automation: Dynamic bending capability allows integration in robotic arms.
Aerospace Instruments: Extreme-temperature resistance ensures long-term reliability.
5G & IoT Solutions: High-speed signal transmission supports next-generation networks.
FPC PCBs provide several benefits that make them indispensable in advanced electronics:
By replacing bulky wiring harnesses, FPCs reduce overall device size and weight significantly.
They bend, fold, and twist without losing performance, enabling compact layouts in complex assemblies.
With fewer interconnect points and solder joints, FPCs minimize failure risks and improve longevity.
Designed to withstand extreme environmental conditions, they’re ideal for automotive, aerospace, and industrial applications.
Controlled impedance ensures efficient, stable, and reliable high-frequency signal performance.
Producing high-quality FPC PCBs involves cutting-edge technologies:
Laser Drilling: Achieves ultra-fine micro-vias for high-density interconnections.
Automatic Optical Inspection (AOI): Ensures defect-free production and consistent quality.
Electroplating Processes: Enhances copper adhesion and durability.
Coverlay & Overlay Application: Provides additional protection against mechanical stress.
Impedance Control Testing: Guarantees stable signal performance for high-speed circuits.
A: The main difference lies in flexibility. Rigid PCBs are fixed and used in static assemblies, while FPC PCBs can bend, fold, and twist without damage, making them suitable for dynamic or compact environments like smartphones, wearables, and automotive dashboards.
A: High-quality FPC PCBs, such as those manufactured by Fanway, are engineered to withstand extreme conditions. With operating temperature ranges from -40°C to +150°C and enhanced vibration resistance, they can reliably perform for over 10 years in demanding applications like automotive electronics and aerospace instrumentation.
With decades of expertise in flexible circuit manufacturing, Fanway provides high-precision, reliable, and customizable FPC PCB solutions. Our advanced production facilities, strict quality control, and innovative engineering allow us to deliver products that meet the evolving demands of industries worldwide.
Whether you need a single-layer prototype or a multi-layer flexible solution for high-frequency applications, Fanway ensures every circuit board is optimized for performance, reliability, and cost-efficiency.
If you’re looking to integrate FPC PCB solutions into your products, contact us today to discuss your project requirements. Our engineering team is ready to help you achieve next-generation designs with cutting-edge technology.
-
