What Makes Heavy Copper PCB the Best Choice for High-Power Applications?

In today’s electronics industry, the demand for high-performance and durable printed circuit boards (PCBs) is growing rapidly. Heavy Copper PCBs, also known as thick copper PCBs, have become a preferred solution for industries that require high current capacity, superior thermal management, and enhanced reliability under extreme conditions. From automotive power systems to renewable energy equipment, these boards are playing a critical role in modern electronics.

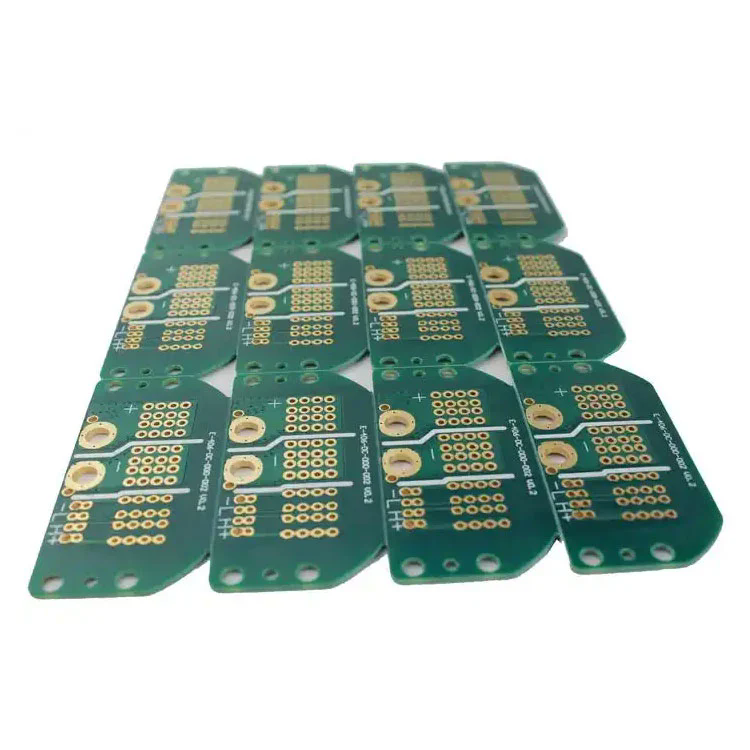

Heavy Copper PCB

What Is a Heavy Copper PCB and Why Does It Matter?

A Heavy Copper PCB is a type of printed circuit board that contains copper conductors with a thickness ranging from 3 oz/ft² to 20 oz/ft² or more. Unlike standard PCBs, which typically use copper layers of 1 oz/ft² or less, Heavy Copper PCBs are designed to handle significantly higher current loads and withstand extreme thermal stress.

Key Benefits of Heavy Copper PCBs

  • High Current Carrying Capacity – Thicker copper layers enable the PCB to handle higher currents without overheating or damaging the circuit.

  • Improved Thermal Management – Heavy Copper PCBs dissipate heat more effectively, making them ideal for applications where power density is high.

  • Enhanced Mechanical Strength – The thicker copper plating adds rigidity and durability, allowing the board to withstand harsh operating environments.

  • Compact Design Possibilities – Designers can integrate high-current and low-current circuits onto the same board, reducing overall size and weight.

  • Better Reliability – With reduced risk of circuit failure under high loads, these boards are well-suited for mission-critical applications.

Heavy Copper PCBs are particularly vital in power electronics, automotive systems, industrial equipment, renewable energy solutions, and aerospace technologies. By increasing copper thickness, engineers can ensure efficient current flow and reduce the chances of thermal-related failures, making these boards a necessity for modern electronics.

Technical Specifications of Heavy Copper PCBs

When selecting a Heavy Copper PCB, technical specifications play a key role in determining performance and suitability for your application. Below is a comprehensive table summarizing the typical specifications of our Heavy Copper PCBs:

Specification Details
Copper Thickness 3 oz/ft² to 20 oz/ft² (customizable)
Layer Count 1 to 32 layers
Base Material FR4, Rogers, Polyimide, Metal Core
Board Thickness 0.8 mm to 6.0 mm
Surface Finish HASL, ENIG, OSP, Immersion Silver, ENEPIG
Solder Mask Green, Blue, Red, Black, White
Minimum Trace Width 3 mils
Minimum Spacing 3 mils
Thermal Conductivity High, optimized for heat dissipation
Operating Temperature -55°C to +150°C
Applications Power electronics, automotive, aerospace, industrial machinery, solar inverters

By choosing the right specifications, engineers can optimize the PCB for high-current, high-temperature, or high-reliability environments. For instance, power converters and electric vehicle controllers require boards with copper thicknesses above 8 oz, while industrial motor drivers may need even higher capacities.

How Are Heavy Copper PCBs Manufactured?

The manufacturing process of Heavy Copper PCBs differs significantly from standard PCBs due to the increased copper thickness. Specialized techniques are used to ensure durability and accuracy.

Material Selection

The process begins with selecting high-quality laminates such as FR4 or metal-core substrates. The chosen material must withstand extreme heat and mechanical stress.

Advanced Etching

Standard PCBs use simple etching processes, but Heavy Copper PCBs require differential etching to ensure precise conductor shapes without undercutting. This is crucial for maintaining the integrity of thick copper traces.

Plating and Via Filling

Plating technology is used to build up copper thickness both on the surface and within vias. Through-hole plating enhances current flow between layers and prevents overheating.

Lamination Process

Multiple copper layers are laminated under high temperature and pressure. Specialized resin systems are used to prevent delamination and maintain structural integrity.

Solder Mask and Surface Finish

High-temperature solder masks are applied to protect copper traces. Surface finishes such as ENIG or HASL are added to improve solderability and corrosion resistance.

Rigorous Testing

Each board undergoes electrical testing, thermal cycling tests, and reliability checks to ensure it meets stringent industry standards.

This highly controlled process ensures that Heavy Copper PCBs deliver exceptional performance, durability, and safety, making them suitable for mission-critical applications.

Applications and Advantages Across Industries

Heavy Copper PCBs are widely adopted across industries where high power, extreme temperatures, and reliability are crucial.

Power Electronics

Used in inverters, rectifiers, and power converters, these boards handle high currents without compromising performance.

Automotive Systems

Electric vehicle controllers, battery management systems, and LED headlights rely on Heavy Copper PCBs for thermal efficiency and long-term durability.

Industrial Equipment

Heavy-duty motors, robotic systems, and factory automation machinery require PCBs that withstand constant high currents and temperatures.

Renewable Energy

Solar inverters, wind turbines, and energy storage systems depend on Heavy Copper PCBs to manage fluctuating loads efficiently.

Aerospace & Defense

In mission-critical environments, reliability is non-negotiable. Heavy Copper PCBs provide stable performance under extreme stress conditions.

FAQs About Heavy Copper PCBs

Q1: What is the difference between a standard PCB and a Heavy Copper PCB?

A: A standard PCB typically uses copper thickness up to 1 oz/ft², while a Heavy Copper PCB ranges from 3 oz/ft² to 20 oz/ft² or more. The thicker copper allows Heavy Copper PCBs to carry higher currents, improve heat dissipation, and handle extreme mechanical stress, making them ideal for high-power applications.

Q2: How do I choose the right copper thickness for my PCB?

A: The copper thickness depends on your current load, operating temperature, and design constraints. For example:

  • Applications below 3A can use 1 oz copper.

  • Applications between 3A–10A generally require 2 oz to 4 oz copper.

  • High-power systems above 10A often demand 8 oz or thicker copper.
    Consulting with an experienced PCB manufacturer ensures optimal copper thickness for your project’s needs.

In an era where electronics must be more powerful, reliable, and efficient, Heavy Copper PCBs provide unmatched advantages. They deliver superior current carrying capacity, exceptional thermal management, and long-lasting durability across industries like automotive, renewable energy, industrial automation, and aerospace.

At Fanway, we specialize in manufacturing high-quality Heavy Copper PCBs tailored to your project’s exact specifications. With advanced production capabilities and strict quality control, we ensure optimal performance for your high-power applications.

If you’re looking for a trusted partner to deliver durable, efficient, and cost-effective Heavy Copper PCB solutions, contact us to discuss your requirements.
