Single Layer PCB

A single layer PCB (Printed Circuit Board) is the simplest type of PCB. Fanway, a China-based PCB manufacturing expert, offers cost-effective single-layer PCB solutions with competitive pricing.

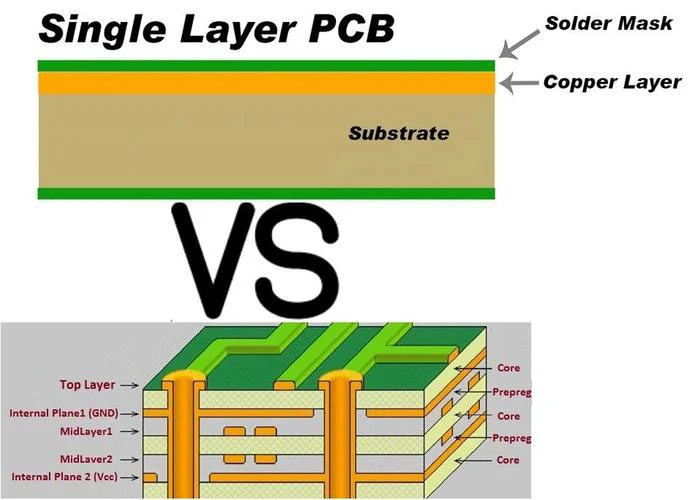

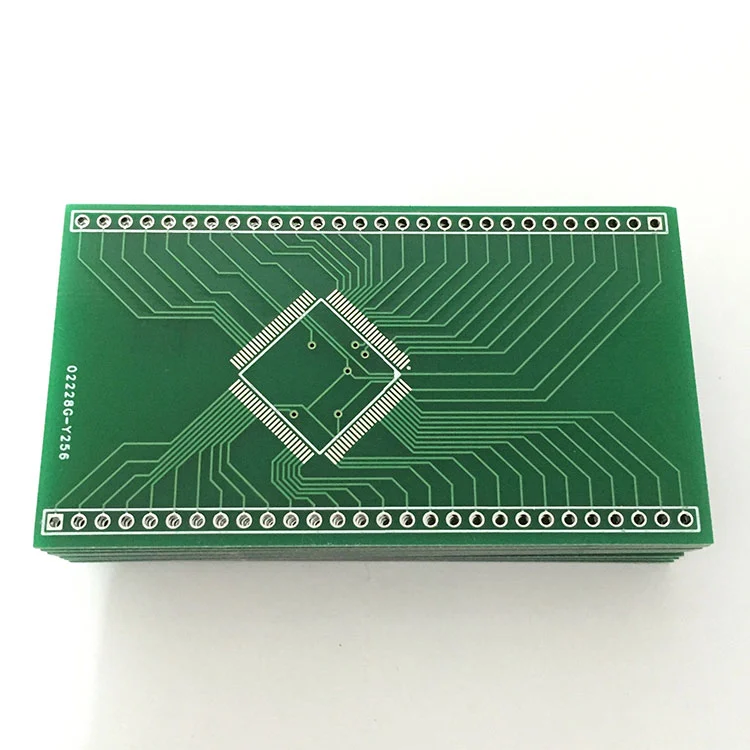

Single layer PCB, also known as a Single-Sided Printed Circuit Board, is the simplest form of PCB design. It consists of a single conductive copper layer laminated on a non-conductive substrate (such as FR-4), with components mounted on one side and traces routed on the opposite side. The best solution for low-complex circuits, it is widely used in consumer electronics, power supplies, and industrial controls due to its affordable and rapid manufacturing process.

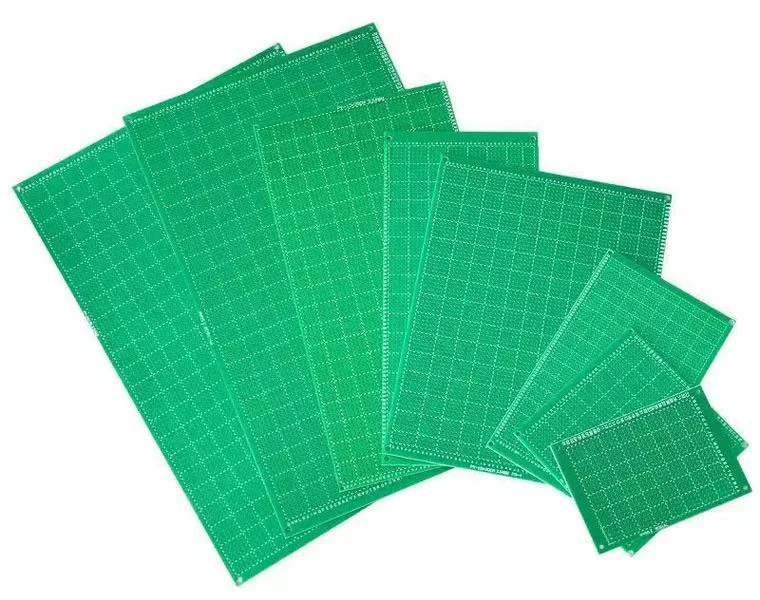

Single Layer Pcb


Advantages of Single-Layer PCBs

Cost-Effective

Precision Manufacturing

Single layer PCB with lower material and fabrication costs compared to multi-layer designs.

Rapid Production

Rigorous Testing

Simple process reduces lead time because no lamination and via drilling required.

High Reliability

High Reliability

Minimum risk of layer misalignment.

Technical Support

Excellent Customer Service

24/ 7 online experts always ready to assist you.


Specifications of Single Layer PCB

Parameter Typical Range
Board Thickness 0.4mm to 3.2mm
Copper Thickness 1/2 oz to 3 oz
Minimum Trace Width 0.2mm (8mil)
Minimum Drilled Hole 0.3mm (12mil)
Surface Finishing HASL, OSP, ENIG
Operating Temperature -50°C to +105°C (material-dependent)


Fanway Single Layer PCB Advantages vs. Limitations

Advantages Limitations
✔ Ultra-low cost ❌ No multilayer or via support
✔ Easy to repair/modify ❌ Limited routing density
✔ Fast turnaround time ❌ Unsuitable for high-frequency designs (>100MHz)
✔ Lightweight & compact ❌ Lower thermal performance

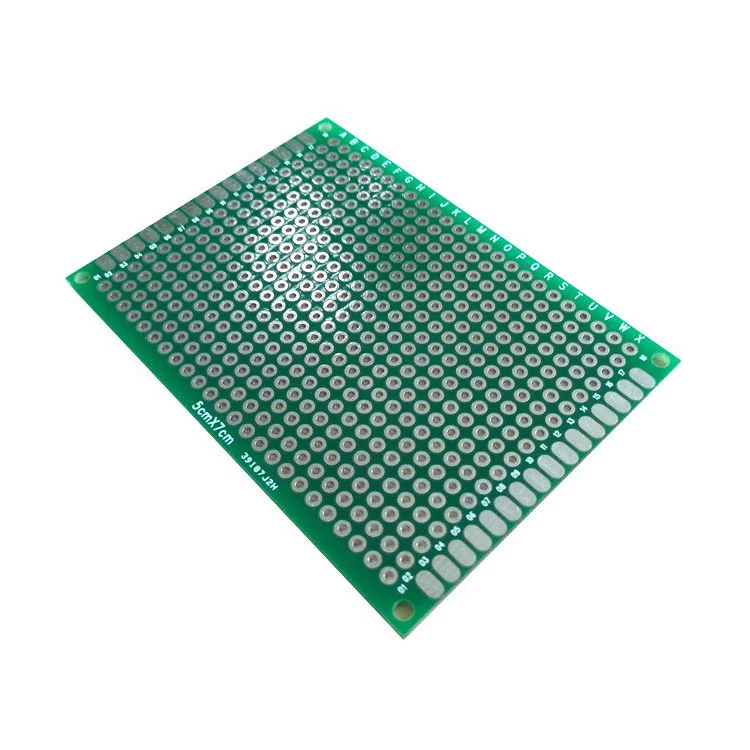

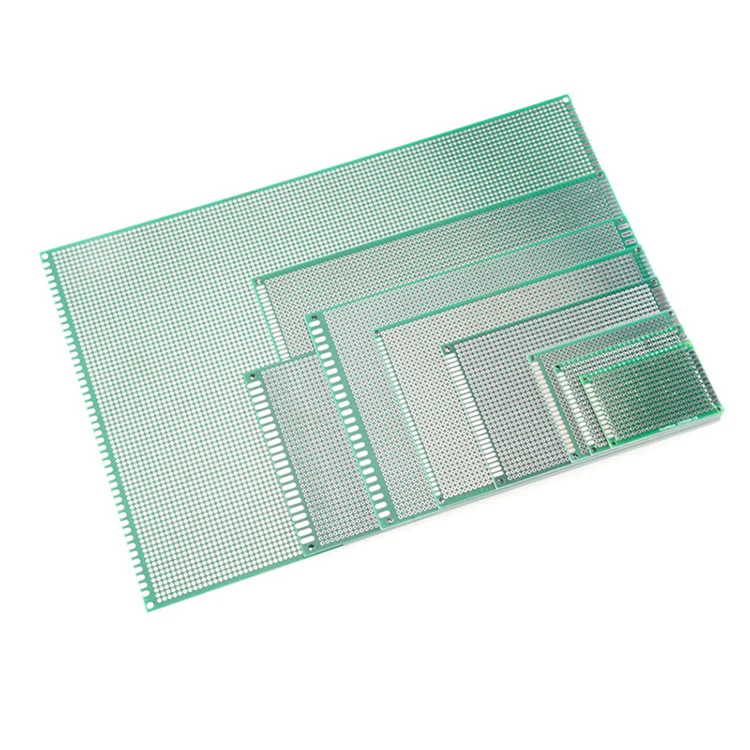

Single Layer Pcb


Manufacturing Process of Fanway’s Single Layer PCB

Material Preparation: Single-sided copper-clad laminate.

Etching: Remove unwanted copper to form traces.

Drilling: Create holes for through-hole components.

Solder Mask & Silkscreen: Apply protective coating and markings.

Surface Finish: Options include HASL (Hot Air Solder Leveling) or OSP.


Application of Single Layer PCB

Consumer Electronics: Calculators, LED lighting, toys.

Power Systems: AC/DC converters, relays.

Industrial Controls: Sensors, motor controllers.
