In the fast-paced world of electronics manufacturing, where compact designs, lightweight structures, and superior performance are essential, Rigid Flex PCBs have emerged as one of the most innovative solutions. Combining the durability of rigid boards with the versatility of flexible circuits, Rigid Flex PCBs are reshaping how engineers design everything from consumer electronics to aerospace systems. In this article, we will dive deep into what Rigid Flex PCBs are, how they work, why they are becoming increasingly popular, and how their unique parameters make them the optimal choice for high-demand applications.

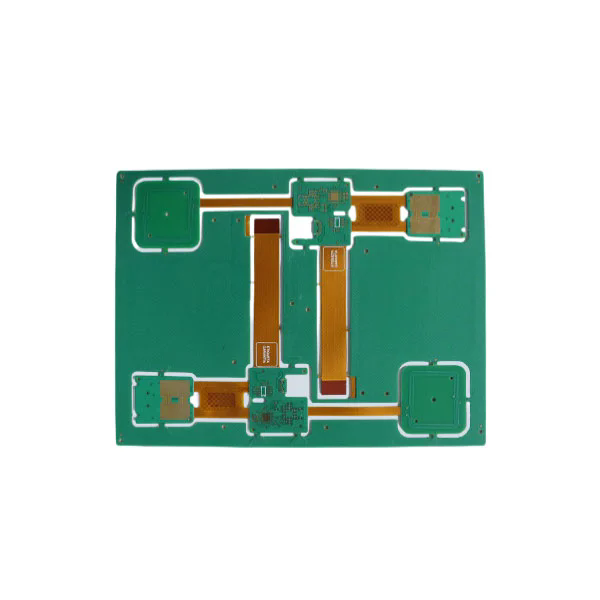

A Rigid Flex PCB is a hybrid printed circuit board that integrates both rigid and flexible substrates into a single, seamless design. Unlike traditional rigid PCBs, which consist entirely of stiff FR4 or similar materials, or purely flexible circuits that use polyimide films, Rigid Flex PCBs combine both technologies to maximize performance and design freedom.
At its core, the rigid section supports components that require mechanical stability, such as connectors, microcontrollers, or integrated circuits, while the flexible section allows the board to bend, fold, or twist to fit into compact enclosures. This makes Rigid Flex PCBs ideal for applications where space is limited but high reliability is crucial.
Signal Integrity: Shorter interconnections between rigid and flex layers minimize signal loss and improve high-speed data transmission.
Mechanical Versatility: The flexible section allows folding, which reduces overall device size and eliminates bulky wiring.
Reliability Enhancement: Integrating flex and rigid parts into a single PCB minimizes solder joints and connectors, which are common points of failure.
This blend of performance and design flexibility has made Rigid Flex PCBs increasingly vital in industries like medical devices, military electronics, automotive systems, and consumer gadgets.
Electronics manufacturers often face a critical decision when selecting PCB types: should they use a traditional rigid PCB, a flexible PCB, or a Rigid Flex PCB? Here are the key reasons why Rigid Flex PCBs are becoming the preferred choice for advanced designs.
| Feature | Rigid PCB | Flexible PCB | Rigid Flex PCB |
|---|---|---|---|
| Space Utilization | Limited | Excellent | Excellent |
| Mechanical Durability | High | Moderate | High |
| Design Flexibility | Low | High | High |
| Signal Integrity | Moderate | Moderate | Excellent |
| Assembly Complexity | High (more connectors) | High | Low |
| Reliability | Good | Moderate | Excellent |
Rigid Flex PCBs offer the best of both worlds by combining the robustness of rigid PCBs with the adaptability of flexible circuits. This results in:
Compact Designs: Essential for smartphones, wearables, and IoT devices.
Reduced Weight: Critical for aerospace, drones, and automotive applications.
Fewer Connection Points: Reduces potential failure points and improves product lifespan.
Enhanced Performance: Maintains superior signal transmission even in high-frequency applications.
Medical Devices: Pacemakers, imaging systems, and surgical tools.
Aerospace & Defense: Avionics, radar systems, and military-grade electronics.
Automotive: Advanced driver-assistance systems (ADAS), infotainment systems, and EV battery management.
Consumer Electronics: Smartphones, tablets, cameras, and gaming consoles.
By enabling miniaturization while maintaining structural integrity, Rigid Flex PCBs have become an indispensable component in next-generation electronic devices.
When selecting a Rigid Flex PCB supplier, understanding the technical parameters is crucial. High-quality manufacturing ensures durability, performance, and compliance with strict industry standards. Below is a summary of the key product specifications that define a superior Rigid Flex PCB:
| Parameter | Specification |
|---|---|
| Material | FR4, Polyimide, PET |
| Layer Count | 2 to 20+ layers |
| Copper Thickness | 0.5 oz to 4 oz |
| Min. Line Width/Spacing | 0.075 mm / 0.075 mm |
| Hole Size | Min. 0.1 mm |
| Flex Bend Radius | As low as 0.5 mm |
| Surface Finish | ENIG, HASL, OSP, Immersion Silver, Gold Plating |
| Operating Temperature | -40°C to +150°C |
| Impedance Control | ±10% |
| Certifications | RoHS, UL, ISO9001, IPC-6013 |
These specifications ensure that the PCB maintains high electrical performance and withstands harsh environmental conditions. Manufacturers specializing in Rigid Flex PCBs employ advanced fabrication techniques such as laser drilling, controlled impedance routing, and automated optical inspection to guarantee precision and reliability.
Choosing the right manufacturer is just as critical as selecting the correct PCB design. Here’s a checklist to help you evaluate a reliable Rigid Flex PCB supplier:
Engineering Expertise: Ensure the manufacturer has experience handling complex multilayer Rigid Flex PCB designs.
Material Quality: Use only high-grade FR4 and polyimide to ensure durability and flexibility.
Quality Assurance: Look for strict testing protocols, including AOI, impedance testing, and thermal stress tests.
Customization Options: Choose a supplier who offers tailored solutions for your specific application requirements.
Lead Time and Scalability: Fast prototyping combined with the ability to scale up for mass production is crucial.
Fanyway is a leading Rigid Flex PCB manufacturer with years of experience delivering high-quality solutions for industries including medical, automotive, aerospace, and consumer electronics. Our products are manufactured using state-of-the-art equipment, comply with IPC-6013 standards, and undergo rigorous quality testing to ensure top-tier performance.
Whether you need a complex multilayer design or a cost-effective prototype, Fanyway provides comprehensive support from design consultation to final production.
Q1. What are the main benefits of using Rigid Flex PCBs in product design?
A1. Rigid Flex PCBs allow for compact designs, reduce overall weight, minimize interconnections, and enhance signal integrity. These benefits make them ideal for industries where reliability and miniaturization are critical, such as aerospace, automotive, and medical technology.
Q2. Are Rigid Flex PCBs more expensive than traditional rigid PCBs?
A2. While the initial manufacturing cost of Rigid Flex PCBs may be higher, they often reduce overall production expenses by minimizing connectors, improving reliability, and enabling efficient assembly. In high-performance applications, they deliver significant cost savings over the product lifecycle.
Rigid Flex PCBs are redefining modern electronics by providing unmatched design flexibility, reliability, and performance. They enable engineers to create compact yet robust products that meet the growing demands of industries ranging from medical technology to aerospace.
At Fanyway, we specialize in manufacturing high-quality Rigid Flex PCBs tailored to your needs. With our cutting-edge facilities, rigorous testing protocols, and engineering expertise, we help you achieve optimal performance and reliability for your products.
Ready to take your electronics design to the next level? Contact us today to discuss your project and discover how Fanyway can deliver the perfect Rigid Flex PCB solution.
-
