Ceramic PCBs (Printed Circuit Boards) are rapidly gaining traction in industries demanding high thermal performance, reliability, and miniaturization. Unlike traditional FR4 boards, ceramic PCBs use ceramic materials as the substrate, offering superior heat dissipation, mechanical strength, and electrical insulation.

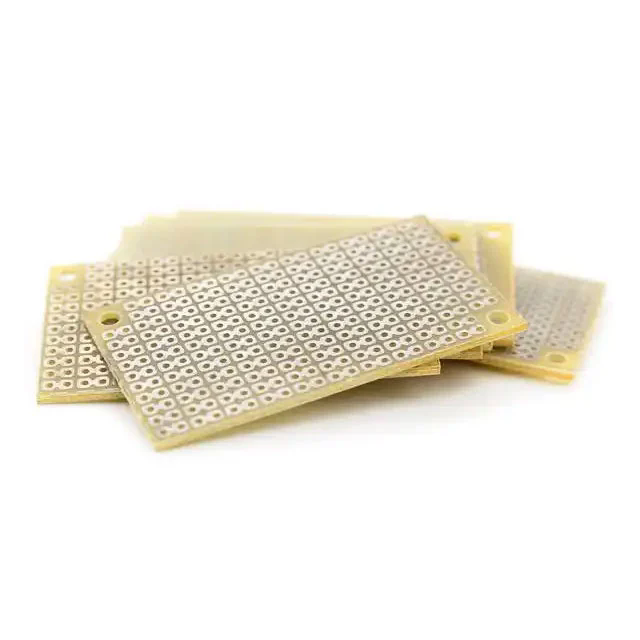

Ceramic PCBs are specialized printed circuit boards that use ceramic materials—commonly aluminum oxide (Al₂O₃), aluminum nitride (AlN), or beryllium oxide (BeO)—as the base substrate. These materials are chosen for their exceptional thermal conductivity, electrical insulation, and stability under high-temperature conditions.
Key Features and Parameters of Ceramic PCBs:
| Parameter | Typical Range / Specification | Description |
|---|---|---|
| Substrate Material | Al₂O₃, AlN, BeO | Determines thermal conductivity and electrical insulation properties |
| Thermal Conductivity | 20–200 W/m·K | Efficient heat dissipation for high-power components |
| Dielectric Constant (εr) | 8–9 (Al₂O₃), 8.5–9 (AlN) | Ensures signal integrity in high-frequency applications |
| Coefficient of Thermal Expansion (CTE) | 6–7 ppm/°C | Reduces stress between PCB and mounted components |
| Maximum Operating Temperature | 450–1000°C | Supports high-temperature operation without substrate degradation |
| Thickness | 0.2–3.0 mm | Supports both thin and rigid designs |
| Copper Layer | 35–105 µm | Provides sufficient current-carrying capacity |
| Surface Finish | Gold, Nickel, Tin, Silver | Ensures reliability in soldering and long-term durability |
Ceramic PCBs are often categorized into Direct Bonded Copper (DBC), Active Metal Brazing (AMB), and Thick Film Technology boards. Each type caters to specific needs, from high-current power modules to microelectronic devices, offering unique advantages in thermal management and mechanical robustness.
Superior Heat Dissipation:
High-power LEDs, RF modules, and power electronics generate significant heat. Ceramic PCBs provide efficient thermal pathways, preventing overheating, improving longevity, and maintaining stable performance under high load conditions. Aluminum nitride-based ceramic PCBs, for instance, can exceed thermal conductivity levels of 200 W/m·K, far superior to standard FR4 boards (~0.3 W/m·K).
High-Frequency Stability:
Ceramic substrates exhibit low dielectric loss, which ensures minimal signal attenuation in high-frequency circuits. This makes them ideal for RF applications, 5G modules, and satellite communication devices.
Mechanical and Chemical Stability:
Ceramics resist corrosion, moisture, and thermal shock, which is crucial in automotive, aerospace, and industrial environments where PCBs are exposed to harsh conditions.
Miniaturization and High-Density Designs:
With the rise of compact electronic devices, ceramic PCBs allow tighter component placement without compromising heat management. Their structural rigidity supports heavy or high-density components.
Long-Term Reliability:
Ceramic PCBs maintain performance over extended periods even under high temperatures and mechanical stress, reducing the need for frequent replacements or system failures.
Ceramic PCBs are integral in sectors requiring both high thermal performance and precision engineering. Key applications include:
LED Lighting: High-power LEDs benefit from ceramic PCBs’ excellent heat dissipation, enhancing brightness and lifespan.
Power Electronics: Inverters, converters, and motor drivers rely on DBC ceramic PCBs to manage current and heat.
Automotive Industry: Electric vehicles and hybrid systems use ceramic PCBs in battery management and powertrain modules.
Telecommunications: RF and 5G devices demand stable signal transmission at high frequencies, achievable with low-loss ceramic substrates.
Medical Devices: High-reliability circuits for imaging systems, lasers, and diagnostics use ceramic PCBs to maintain precise operations under high temperatures.
Emerging Trends:
Integration with Flexible Electronics: Combining ceramic PCBs with flexible substrates allows hybrid designs for wearable devices and compact robotics.
Advanced Thermal Management: Innovations like embedded heat pipes or micro-channel cooling are being implemented alongside ceramic PCBs to further enhance performance.
Miniaturization of High-Power Modules: Ceramic substrates support high-density interconnects in small form factors, enabling next-generation consumer electronics and industrial equipment.
Green Manufacturing: Eco-friendly ceramic PCB production techniques are gaining traction, reducing environmental impact while maintaining high performance.
Q1: What are the advantages of using ceramic PCBs over metal core PCBs?
A1: Ceramic PCBs offer superior thermal conductivity, lower dielectric loss, higher temperature resistance, and greater mechanical stability compared to metal core PCBs. While metal cores excel in heat spreading, ceramics provide precise thermal management at localized hotspots and maintain electrical insulation simultaneously.
Q2: How does the thickness of a ceramic PCB affect its performance?
A2: Thicker ceramic substrates improve mechanical strength and allow higher current capacity but may slightly reduce heat dissipation efficiency per unit thickness. Choosing the optimal thickness balances rigidity, thermal performance, and manufacturing feasibility for the intended application.
Q3: Can ceramic PCBs be used in high-frequency applications?
A3: Yes, ceramic PCBs have low dielectric loss and stable permittivity, making them ideal for RF circuits, 5G modules, and microwave applications, where signal integrity is critical.
Q4: Are ceramic PCBs more expensive than traditional FR4 boards?
A4: Yes, ceramic PCBs generally have higher upfront costs due to material and processing complexity. However, the long-term reliability, thermal efficiency, and reduced failure rates often justify the investment, especially in high-power or high-frequency applications.
Q5: What are the differences between DBC, AMB, and Thick Film ceramic PCBs?
A5: DBC boards feature copper directly bonded to ceramic, providing excellent thermal conduction for power devices. AMB boards use brazing techniques for strong thermal and electrical connectivity. Thick film ceramic PCBs rely on printed conductive pastes, suitable for compact, multi-layer circuits.
