Fanway’s PCB Design & Layout Services: From Concept to Production-Ready Solutions

PCB design and PCB layout are the processes of creating the physical layout and electrical connections for a printed circuit board (PCB), which forms the foundation of nearly all electronic devices. This involves transforming a schematic (circuit diagram) into a manufacturable board ready for component assembly. At Fanway, we are more than just a PCB manufacturer and supplier in China. We provide fast-turnaround PCB design and layout solutions, covering everything from schematic development to delivering production-ready files.

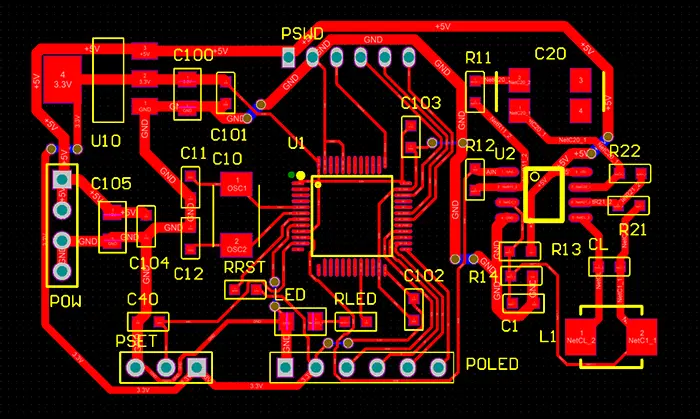

Pcb Schemetic

We Specialize in

High-speed, high-density, and high-frequency PCB design
Complex system-level PCB layout
Signal integrity (SI) and power integrity (PI) optimization
EMI/EMC compliance and thermal management


Fanway’s PCB Design and Layout Capabilities

Item Specification/Capability
Design Software Altium Designer, Cadence Allegro, Mentor Xpedition, CADSoft (EAGLE)
Maximum Layers 1-32 layers (Standard design), supports any-layer HDI
Min. Trace Width/Space 0.05mm / 0.05mm (Laser drilling technology)
Impedance Control ±5% tolerance (Supports single-ended/differential impedance design)
High-Frequency Design Up to 40GHz (RF circuits, microwave modules)
Design Standards IPC-2221, IPC-7351, ISO9001 certified


Why Choose Fanway for Your PCB Design and Layout Service?

Rich Experience

Stringent Quality Control

12+ years in the PCB industry, with many design projects successfully delivered.

Rapid Response

Fast Turnaround Time

We provide preliminary design proposals within 48 hours.

Cost Optimization

Competitive Prices

DFM (Design for Manufacturability) analysis reduce mass production costs.

Technical Support

Excellent Customer Service

Free of charges design consultation, troubleshooting, and mass production support.


Confidentiality Commitment

We sign Non-Disclosure Agreements (NDA) strictly protect intellectual property.

Pcb Design And Layout


FAQ for PCB Design and Layout

Q1: How long does the design process take?

A: Typically 3-6 weeks, depending on complexity (e. g., 10 working days for a 4-layer PCB).


Q2: Do you support design modifications?

A: Yes. We offer 1-2 minor modifications free of charge to ensure 100% customer satisfaction.


Q3: What input materials are required?

A: Schematics, mechanical drawings, key component datasheets, and design requirement documents.


Q4: Can you assist with mass production issue resolution?

A: Absolutely. We provide full lifecycle technical support from design to mass production.
